Product information

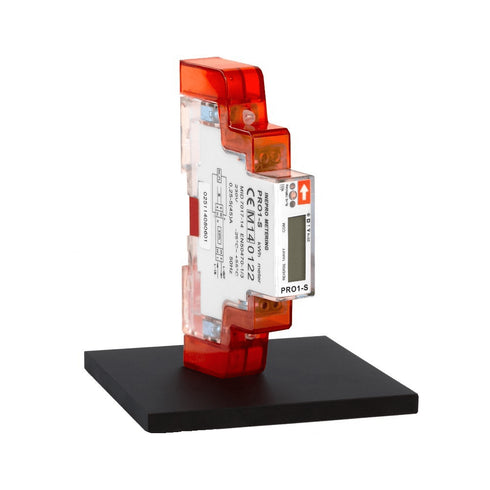

- 1-phase kWh power meter for both IT and TN networks
- Takes only 1 module in the fuse box on a DIN rail
- Withstands up to 45A current
- LCD display - easy reading of consumption and other data
inepro® PRO1 series is made of halogen-free material and is a 1-phase current meter for use in TT, IT and TN grid systems. The current meter is mounted in a fuse box on a DIN rail (series meter). Practical if you want to have control over how much the electricity course uses. The meters are advanced and can show lots of other data in addition to consumption, such as e.g. voltage and current draw in real time. If it is to be connected with aluminium, transitions must be used. See the "Questions and Answers" tab for the manual.
According to regulations on electrical equipment § 13, we are obliged to inform our customers that all electrical equipment intended to be part of a fixed electrical installation can only be installed by an authorized and registered installation company.
NB! We remind you that this product must be installed by an authorized electrician.
Technical details
| Number of phases | 1 |
|---|---|
| Current strength | Up to 45A |
| Operating voltage | 230V, Ui=6kV 50hz |
| Power grid | TT-, IT and TN |
| Screen | LCD |
| Number of modules | 1 |
| Reading value | kWh |
| Operating temperature | -25°C - 50°C |
| Goal | L 102mm x W 66mm x H 22mm |
| Weight | 95 grams |
| Safety/protection class | IP20 |
| Routines | Checked for overheating approximately once a year. |
| Norm | IEC/EN 62053-21. |
| Warranty | 3 years |
Questions and answers
The installation and user manual can be downloaded under:
Pro1-S user manual - English
What is the recommended tightening torque?
We recommend a tightening torque of 2-2.5 Nm
Warranty
We are proud of our products and it is important to us that you as a customer are satisfied. That's why we give a 2-year guarantee on the vast majority of our products, with the exception of consumables. Look for the warranty logo to see what applies to this particular product. Our guarantee means that the item must work as expected throughout the guarantee period (this is in addition to your rights under the Consumer Goods Act). Read more about the guarantee in our purchase conditions .
