Product Information
- Isolation Transformer- perfect for Renault ZOE
- 3,6 kW - (16A 1-phase 230V) or 7 kW (32A / 1-phase 230V)
- Low weight and quiet
- Making a brand new power grid without any earth faults

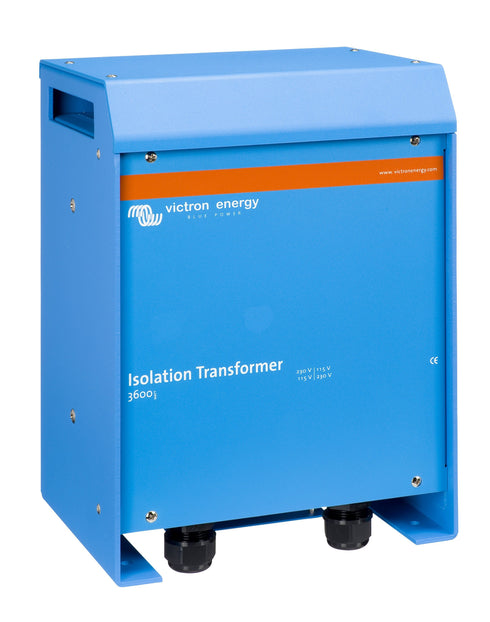

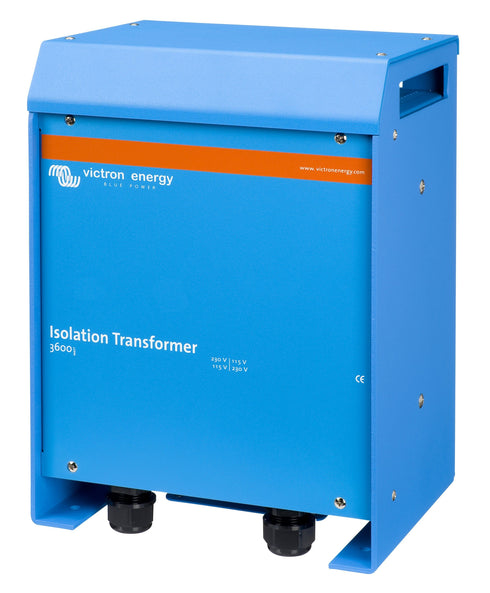

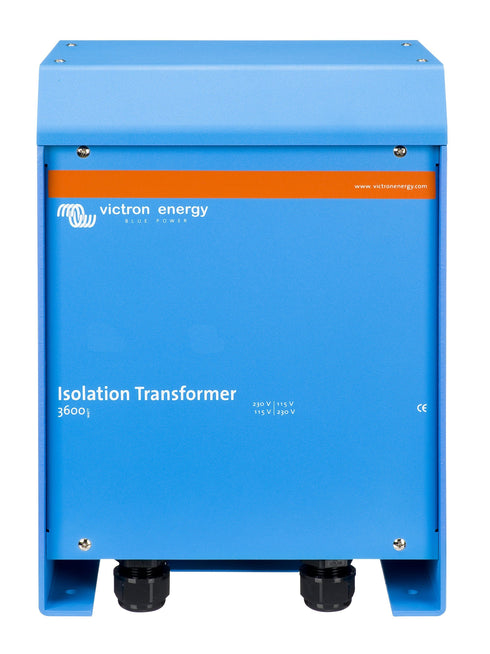

Victron Energy isolation transformer is one solution for charging on the Norwegian IT network for Renault ZOE owners. The transformer creates a new local stable power grid which is done by connecting one output together with protective ground which will act as a neutral conductor. In this way, you can connect a charging station or a regular socket and charge your Renault ZOE. With such a galvanic separation, you can connect any charging cable to charge. The isolation transformer is very small and takes up little space, which makes it easy to install.
Soft start
This is a standard feature of Victron Energy isolation transformers. This prevents the fuse from tripping due to the transformer's inrush current.
Technical Details
Width |

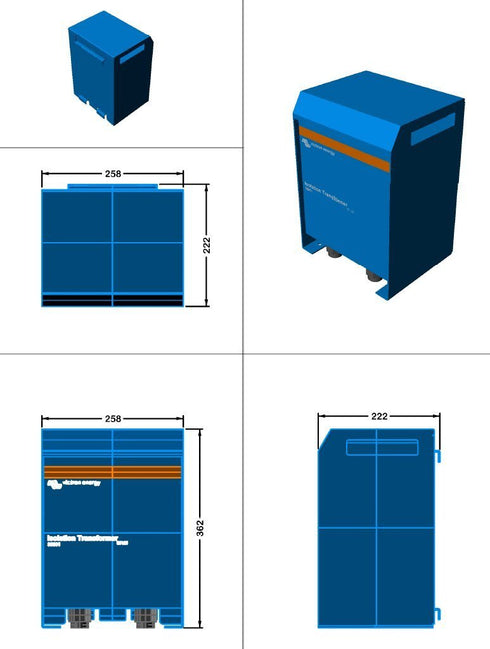

362 (H) x 258 (W) x 218 (D) mm |
---|---|
Entrance |
115V or 230V |
Exit |
115V or 230V |
Frequency |
50/60Hz |
Amperage |
16A (230V) / 32A (230V) |
Max Effect |
3,6 kW / 7 kW |
Enclosure |
Aluminum |
Soft start | yes |
Operating Temperature |
-20°C to 40°C |
Transformer type | Toroidal (quiet and light weight) |
Moisture |
Max 95%, non-condensing |
Protection Class |
IP21 |
Produced | Netherlands |
Weight | 23kg (3,6 kW) 28kg (7 kW) |
Warranty |
5 years |
Questions and Answers
Installation and user manual
Victron Energy isoleringstransformator 3600W brukermanual - English
Warranty
We are proud of our products and it is important for us that you, as a customer, are satisfied. That's why we give you a 2 year warranty on the vast majority of our products- with the exception of consumer goods. Look for the warranty logo to see what applies to this particular product. Our warranty means that this product should function as expected through it's entire warranty time. (In addition to your rights under the Consumer Goods Act). Read more about this warranty in our purchase conditions kjøpsbetingelser.
