Product Information
- New design and easier assembly- connection of conductors via screws

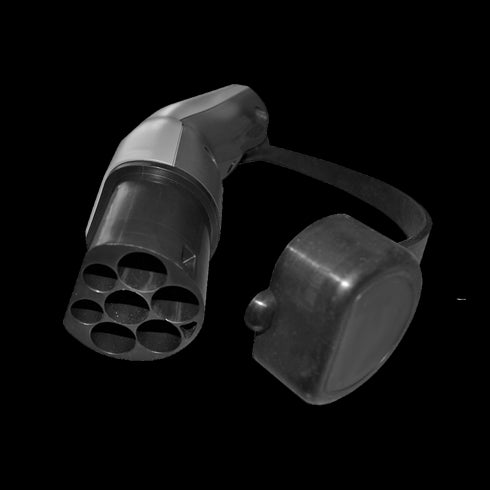

- Type 2 male plug - fits the charging stations charging connector
- Degree of protection IP44
- Supports both 16A and 32A, 1- og 3-phase

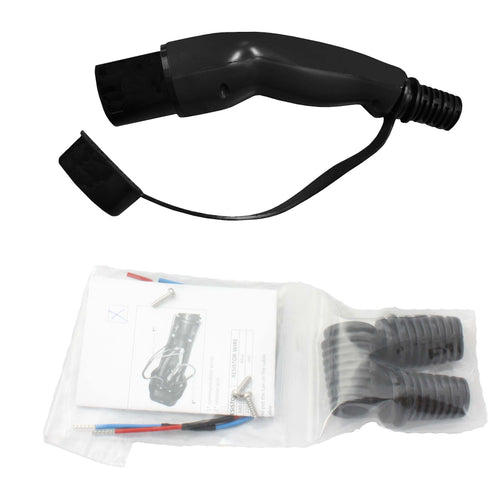

Type 2 plug (male) that connects to the charging stations charging connector. R-plug is a newly designed type 2 plug that is very easy to install. Most plugs require pressing tools for connecting conductors, but R-plug uses screws (star) which makes installation easy and without the need for special tools.
There are replacement plugs if you've had the misfortune of breaking yours. The plug supports both 16/32A and 1- and 3-phase. It comes with strain relief for cables up to 25mm or 5x6mm².
The plug is suitable for all charging stations
According to regulations on electrical equipment §21, we are obliged to inform our customers that all electrical equipment intended to be part of a fixed electrical installation can only be installed by an authorized and registered installation company installasjonsvirksomhet.
Technical Details
| Charging Plug | Type 2 (male) |
|---|---|
| Number of Phases |
1 / 3 |
| Amperage |
16A / 32A |
| Operating Voltage |
230V AC / 400V |
| Color |
Black/grey |
| Charging Standards | IEC 6296-2 |
| Operating Temperature | -30°C - 50°C |
| Measurement | L 20,5cm x W 7cm x H 9cm |
| Weight | about 0,5kg |
| Security/ Protection Class | IP44 |
| Certifications | CE |
| Warranty | 2 years |
