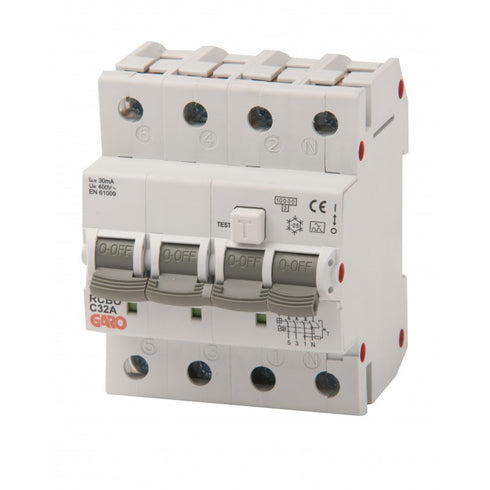

GARO- Earth Fault Circuit Breaker- Combined Automatic Circuit Breaker- Type A- 30mA- 16A/20A/25A/32A- C-KAR- 3+N

SKU: 1631852

AVAILABILITY: Out of Stock

VENDOR: GARO

1.499 kr
1.199 kr eks. mva.
STORE AND PICK-UP POINT
Gladengveien 18, 0661 Oslo
FAST DELIVERY
1-3 Working days by post

Only 1.000 kr away from free shipping

Product Information


  • Combined Earth Fault Circuit Breaker 30mA Type A (30mA) and 3+N (4 module)
  • C-Characteristic (KAR) - Slow Disconnection
  • Suitable for 400V (TN) power grid
  • Used in combination with the charging station w/ built-in DC-RCM 6mA

GARO logo



Earth (ground) fault circuit breaker 3+N Type A in fuse box and charging station with built-in DC-RCM 6mA meets the requirements for DC protection according to NEK 400:2018 §722.531.2. Interpretation indicates that current-controlled earth fault protection type B or equivalent DC protection must be used on new current courses intended be used for charging electric vehicles or plug-in hybrids.

The earth fault circuit breaker/ combined automatic circuit breaker has (C-KAR) or C- Characteristic (tolerance time) permits a certain overload over a specified period of time. This is to allow, for example, any charging (and other things that require large starting currents) to be allowed to start with large currents without the machine having to switch off. The characteristic is determined by the electromagnet inside the fuse. Protection is available in all phases. 10kA Pulse and surge current proof 30mA earth fault circuit breaker Type A.



According to regulations on electrical equipment §13, we are obliged to inform our customers that all electrical equipment intended to be part of a fixed electrical installation can only be installed by authorized and registered installation company installasjonsvirksomhet.



Technical Details


Material Plastic
Number of Amperage
16-20-25-32
Voltage 400V (TN-grid)
Short Circuit Current 10kA
Trigger Characteristic
C-KAR
Frequency 50
Number of Poles
3+N
Width (DIN- Rail) 4 modules
Torque
max 3Nm
Trigger Current
Depending on the model
Operating Temperature
-25°C - 55°C
Storage Temperature
-35°C - 55°C
Measurements H 90mm x W 36mm x D 75mm
Weight 220 grams
Origin Sweden
Security/ Protection Class IP20
Installation Performed by an authorized electrician
Certifications
CE, KEMA
Warranty
2 years
