Tapping module / branching module for flat cable - 5G16-25mm² - Woertz

• Tapping module / branching module for flat cable 5G16-25mm²
• Fits both WAGO and Woertz flat cable systems
• IP65
• Black color

• Price per piece

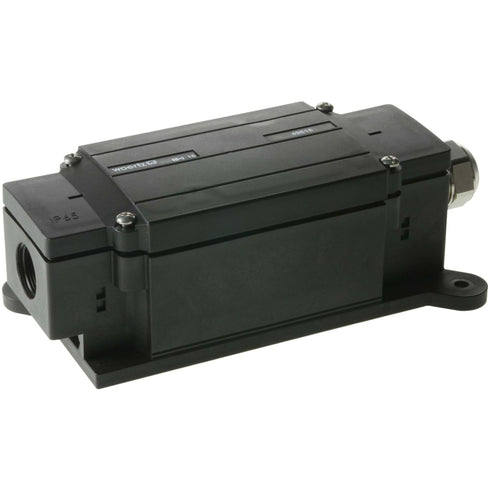

Woertz's tap module / branch module is mounted directly on the flat cable. Fits both Woertz and WAGO flat cable.

The junction box is 5-pole for flat cable 5G25 mm² or 5G16 mm², with fastening, for 2 threaded outlets/inlets M25x1.5. The box comes in a black finish and has IP rating 65. LxWxH: 200x85x73mm. M25 gland (Elnr 1583565) and M25 blind plug (Elnr 1583571) are accessories and must be ordered separately.

Flat cable for installing infrastructure for electric car charging offers a number of advantages in parking garages, garage facilities and for companies that want a flexible facility where charging points can be expanded or removed as the need arises.

The flat cable installation is compatible with all manufacturers of charging boxes and because the infrastructure is already ready with the installation of flat cable, new charging points can be installed in 15 minutes afterwards.

Then mount the Woertz junction box / supply module over the flat cable where the supply is to be connected.
Now, Woertz feeder boxes are connected wherever you want an outlet for an electric car. These are available without, with single and double outlets.

The flat cable system is based on piercing technology, which makes branching possible without having to cut the cable or use special tools. Instead, the contact between conductors occurs by the box enclosing the cable and the technology ensures that the pointed screw penetrates the insulation in the cable and creates contact. This guarantees low resistance values.

Woertz fire safety systems represent a total solution with the highest safety requirements, consisting of cable routing, flat cable and junction boxes. The system ensures that safety-relevant elements, in the event of a fire, maintain a reliable power supply for lighting and ventilation during an evacuation to protect life and health.

The Woertz fire safety flat cable system is a system-tested, DIN4102 E30/E90 function-preserving complete solution that meets the highest classification in the regulation, B2ca S1d0a1.

Due to the design advantages of flat cable and high-tech materials, the patented Woertz fire safety system is significantly safer than round cables and also offers outstanding advantages in terms of installation speed and the cable is halogen-free.
The FE180 E90 flat cable system is used in demanding environments such as railway and road tunnels, power plants, industrial plants and escape routes to ensure emergency lighting.

All Woertz cables and boxes are entirely made in Switzerland and are internationally certified.

Assembly
See load table referring to installation types A2, B2, C, D2 and E. It is flexible and easier to handle and install. The cable is double insulated and can be installed in walls, laid outdoors in cable trenches, such as when connecting to outdoor cabinets according to NEK 399.

According to the Electrical Equipment Regulations, Section 13, we are obliged to inform our customers that all electrical equipment intended to be part of a fixed electrical installation can only be installed by an authorized and registered installation company .
