Product Information

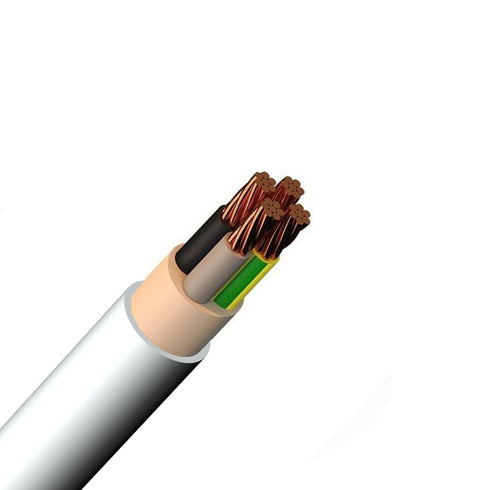

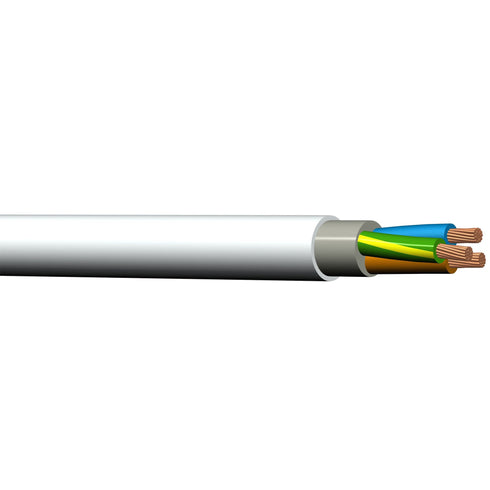

- PFXP Installation cable (double insulated) for fixed installations
- Suitable for both outdoor and indoor use
- Well suited for use on cable bridges or laid in ducts and pipes
- Price per meter
PFXP installation cable for low-voltage systems (230V / 400V) which is suitable for fixed installations on cable bridges, ducts, in pipes or insulated walls without additional protection. Outdoors, the cable can be mounted directly on the wall but must not be laid directly in soil, water or cast into concrete. In that case, a traction pipe must be used to protect the cable. It is multi-wired that is double-insulated with a separate earth conductor.
According to regulations on electrical equipment §13, we are obliged to inform our customers that all electrical equipment intended to be part of a fixed electrical installation can only be installed by an authorized and registered installation company installasjonsvirksomhet.
Technical Details
| Conductor Cross Section | 2,5mm² |
|---|---|
| Number of Conductors | 2P + PE (3G2,5mm²) |
| Conductor Marking | Brown, black + yellow/ green (PE) |
| Type of Conductors | Multi-wired, round copper |
| Voltage | 300V / 500V |
| Outer Diameter | Ø11mm |
| Color on Cable/ Outer Sleeve | White, lead-free UV-resistant PVC |
| Insulation | Double insulated, lead-free PVC |
| Maximum Operating Temperature | 70°C |
| Minimum Handling Temperature | -15°C |
| Conductor Resistance DC Max. +20°C | 7,41 ohm/km |
| Weight | 160g pr meter |
| Fire Class | ECA |
| Sales Packaging | Per meter |
| Assembly | Pulled through piping/ directly on the wall |
| Produced | REKA Kabel AS |
| Standard | CENELEC HD 21.4 S2; NEK IEC 60332-1/ EN50265 |
Questions and Answers
Why type of cable is this?
This is an installation cable to your charging station which should be assembled directly into the charging box.
Warranty
We are proud of our products and it is important for us that you, as a customer, are satisfied. That's why we give you a 2 year warranty on the vast majority of our products- with the exception of consumer goods. Look for the warranty logo to see what applies to this particular product. Our warranty means that this product should function as expected through it's entire warranty time. (In addition to your rights under the Consumer Goods Act). Read more about this warranty in our purchase conditions kjøpsbetingelser..
