Product Information
- Module enclosure for 4 modules with lid for outdoor installation
- Profile rail / DIN rail
- Protection class: IP65
- Space for 1 pc 4-module on the rail

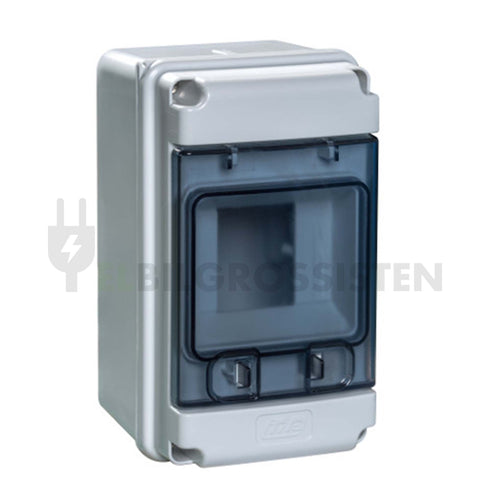

A tight module box that is IP65 with 4 module slots. Delivered in grey finish with smoked lid.
In accordance with the regulations on electrical equipment § 21, we are obligated to inform our customers that all electrical material intended to be part of a fixed electrical installation can only be installed by an authorized and registered installation business.
Technical Details
| Electrical number | 2577250 |
|---|---|
| Sales packaging | 1 |
| Unit | Piece |

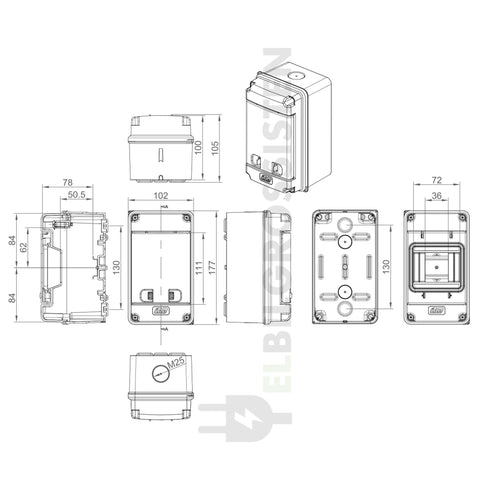

| Packaging dimensions | 177x102x105mm (HxWxD) |
| Protection class | IP65 |
| Impact resistance | IK08 |
| Glow wire resistance | 650ºC |
| Ball pressure test | 70 ºC |
| Operating temperature | -25 ºC / +40 ºC |
| Maximum operating voltage | 1000 V AC / 1500 V DC |
| Number of modules | 1x4 DIN-module |
| Color | RAL 7035 |
| Window | Transparent |
| Cable entry | Top: 1xM25 |
| Weight | 350g |
| Material | Halogen-free plastic material. Frame and base: ABS. UV protection according to ISO standard 4892-2, Method A: 500h |
| Warranty | 2 years |
Questions and Answers
Frequently asked questions will be listed here.
Warranty
We are proud of our products and it's important for us that you as a customer are satisfied. Therefore, we offer a 2-year warranty on most of our products, with the exception of consumables. Look for the warranty logo to see what applies to this particular product. Our warranty means that the item should function as expected throughout the warranty period (in addition to your rights under the Consumer Purchases Act). Read more about the warranty in our purchase terms.
