Product Information
- Adjustable charging cable between 6A/10A/13A/16A/20A/25A/32A with type 2 plug
- 7,5 meter quality cable from Mennekes
- Very small control box - Light-weight
- Top of the line security - built in earth fault circuit breaker and DC-filter 6mA

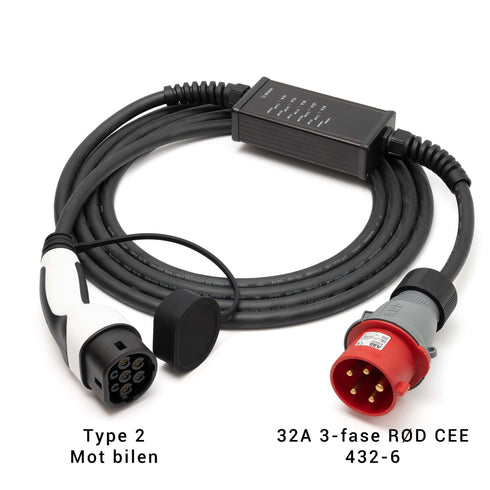

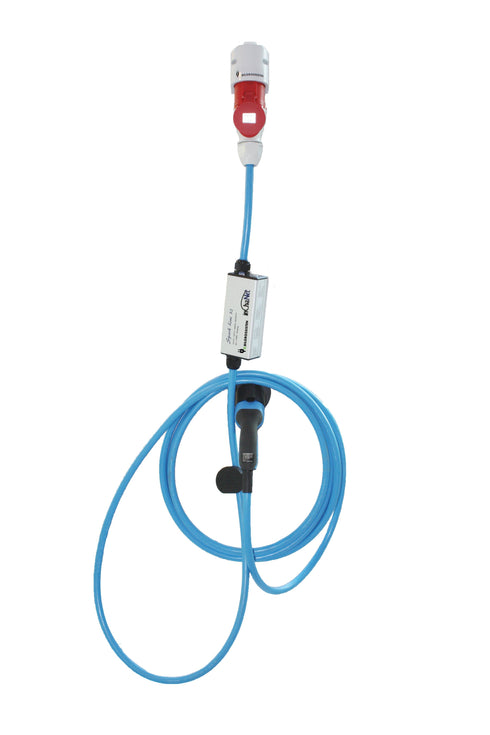

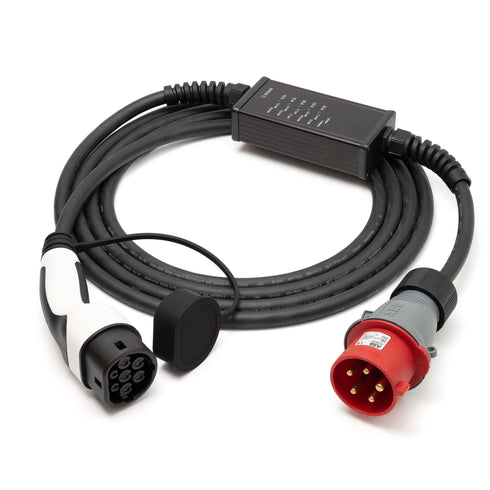

The SPARK Red charging cable is supplied with a red CEE 32A 3-phase 400V 5-pole industrial plug (432-6) and type 2 plug for the car, which provides the option of charging with up to 22kW. The charging cable is either 5 or 7,5 meters long, combining ease of use with high security. The charging cable has one of the market's smallest control boxes with 22kW power. The charging cable has full DC filter of 6mA which means that it can be safely connected to all dedicated current courses. The control electronics (EVSE) performs a self-diagnosis when it is connected to the mains and will display an error code via a flashing LED light. The self-diagnosis includes:
- Continuous monitoring of the cables between the power grid and EVSE
- Continuous monitoring of the wiring between the EVSE and the vehicle
- Continuous monitoring for earth faults and of the voltage
- In the event of an overvoltage or detection of and earth fault, the vehicle is disconnected within 40ms
- Earth fault circuit breaker type A w/ DC-filter 6mA
- Continuous monitoring of coupling elements
- Integrated protection against overheating
The charging cable is constructed in accordance to IEC 62196 and IEC 61851-1 and fulfills all security requirements.

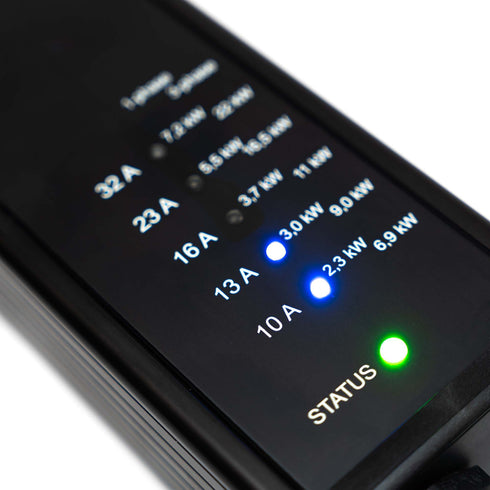

Adjusting the Amperage
SPARK Red can adjust the amperage between steps 6A/10A/13A/16A/20A/25A/32A. The adjusting is made easily via a button with an LED-diode that shows which step it is on. This is useful for cars that do not have this option via the car.
Versatile SPARK Red Mini can be used on several types of industrial connectors by means of cable adapters/ transition. You can find these here. (her.) Matching red industrial socket on the wall can be purchased here. (her.)
Instructions for use can be found under the "Questions and Answers" tab.
Technical Details
| Cable Length |
5 and 7,5 meter |
|---|---|
| Number of Phases |
1 / 3 |
| Amperage |
adjustable between 6A/10A/13A/16A/20A/25A/32A |
| Power |
Max 32A |
| Operating Voltage |
230V / 400V |
| Effect |
22kW |
| Power Consumption | 0,35W standby |
| Power Plug |
Red CEE 32A 5-polet (432-6) |
| Charging plug |
Type 2 (IEC 62196) |
| Earth Fault Protection |
Type A m/ DC-filter 6mA - DC-RCM - protection according to NEK400:2014 |
| Measurement on the control unit |
5cm x 8cm x 19cm (HxWxL) |
| Operating Temperature |
-30°C to 50°C |
| Protection Class |
IP65 on the control box and IP44 connected to the car |
| Weight |
5 kilo |
| Certifications |
IEC 62196, IEC 61851-1, CE, EMV, RoHS |
| Warranty |
3 years |
Questions and Answers
Is there a user manual for FastCharge X32?
Below you will find a user manual in Norwegian and English
Norsk bruksanvisning - SPARK LINE 32
Warranty
We are proud of our products and it is important for us that you, as a customer, are satisfied. That's why we give you a 2 year warranty on the vast majority of our products- with the exception of consumer goods. Look for the warranty logo to see what applies to this particular product. Our warranty means that this product should function as expected through it's entire warranty time. (In addition to your rights under the Consumer Goods Act). Read more about this warranty in our purchase conditions kjøpsbetingelser.
