Product Information

- Module enclosure for 4 modules with lid for outdoor installation
- Profile rail / DIN rail
- Protection class: IP65
- Space for 1 pc 4-module on the rail

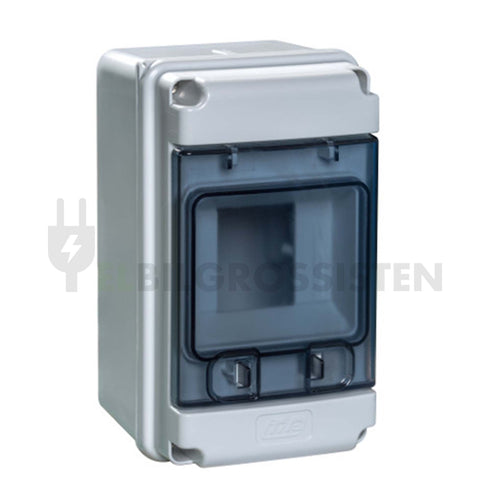

A tight module box that is IP65 with 4 module slots. Delivered in grey finish with smoked lid.
In accordance with the regulations on electrical equipment § 21, we are obligated to inform our customers that all electrical material intended to be part of a fixed electrical installation can only be installed by an authorized and registered installation business.
Technical Details
Electrical number | 2577250 |
---|---|
Sales packaging | 1 |
Unit | Piece |

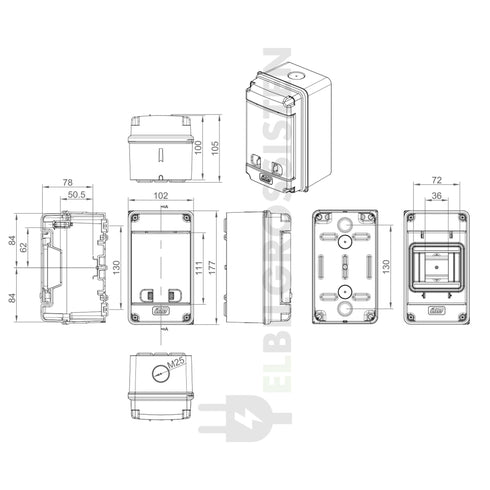

Packaging dimensions | 177x102x105mm (HxWxD) |
Protection class | IP65 |
Impact resistance | IK08 |
Glow wire resistance | 650ºC |
Ball pressure test | 70 ºC |
Operating temperature | -25 ºC / +40 ºC |
Maximum operating voltage | 1000 V AC / 1500 V DC |
Number of modules | 1x4 DIN-module |
Color | RAL 7035 |
Window | Transparent |
Cable entry | Top: 1xM25 |
Weight | 350g |
Material | Halogen-free plastic material. Frame and base: ABS. UV protection according to ISO standard 4892-2, Method A: 500h |
Warranty | 2 years |
